AII's new data logging Sensor Hub combines a main logging unit with multiple wireless remote sensors, offering the most unique and flexible options available in any logging device!

Applications

• Training
  • measure consistency and endurance regarding specific swings, strokes or actions, both for individuals and between teammates
  • actually calculate the effectiveness of new training on performance by comparing data from before during and after the start of a new training regimen
• Tuning
  • See how minute changes of equipment or technique affect performance
• Historical Comparison
  • Compare logged runs, analyzing section by section where time was lost or gained
• Virtual Races
  • Team members can complete a course on their own schedule and have the data compiled and displayed as if they were in a race together.
  • Race yourself! See if you can beat your own times, and analyze where you've improved.
• Adventure Logging

Features

• Log readings from dozens of wireless ZigBee PRO devices and environmental sensors
• Can send live readings over a wireless cellular Internet connection
• Automated download of logged data over Wi-Fi
• Bluetooth GPS Support
• Support for Bluetooth OBD-II onboard vehicle diagnostics
• 3-Axis Accelerometer measuring upto 6 g's of force upto 640 times per second
• The latest in high-precision GPS technology (SiRF III) with optional external antenna
• High-precision pressure and temperature sensor for elevation profile data
• Micro-SD disk for storing up to 2GB of data
• Long-lasting Lithium-Ion battery, recharged by a standard computer USB cable
• User configuration for customizing sampling rates and many other attributes
• Logging of data from multiple wireless sensors
• Calibration feature allows unit to be oriented in any direction, while maintaining knowledge of up/down, fwd/back, left/right
• Connect to a computer and stream live GPS data to your favorite GIS application

• 3-Axis Accelerometer measuring upto 6 g's of force upto 130 times per second
• 2-Axis Gyroscope (optional)
• Temperature Sensor (optional)
• Multi-Channel 2.4GHz wireless transmitter, capable of sending upto 300 feet
• Rechargeable Lithium-Ion battery
• Customizable sampling rates
• Compact flanged package for easy attachment to any surface

• Java based application running on Windows, Linux, and Macs
• Provides ability to display logged data in graphs, that can be zoomed down to the millisecond level
• Configures all options of the main logger and wireless sensors
• Display live graphs of logger board and wireless data readings
• Converts data tracks to KML (Google Earth), as well as to comma separated value (CSV) files

Need another aspect of your sport logged? Let us know about it!

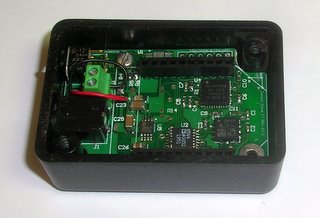

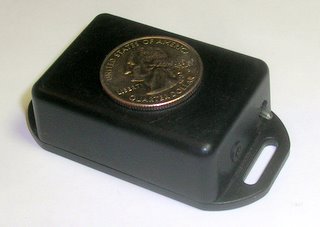

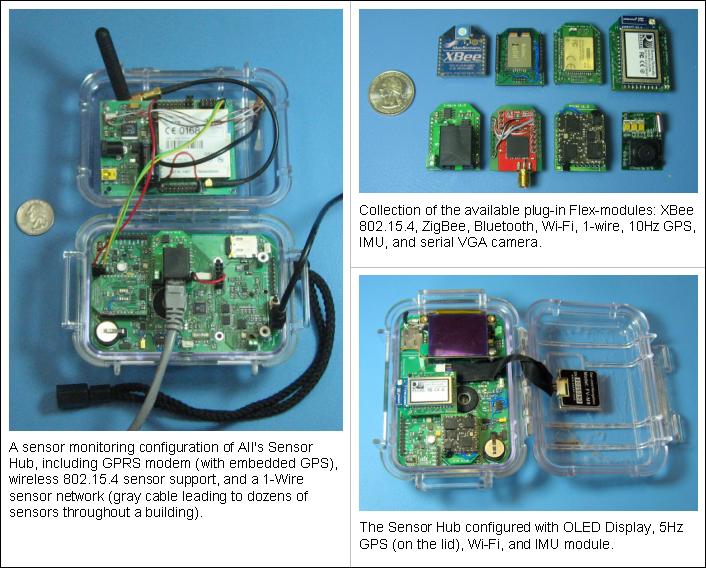

Pictures

Sample Data

Check back here frequently, as we continue to post more examples of activities recorded with the Sensor Hub. The links below contain different sets of analysis, graphs, and downloadable tracks.

• Caja del Rio Horse Endurance Race - our first stress test
• Mountain Bike Ride - shows a set of data captured from a mountain bike ride
• Hot-Air Balloon Ride - data from the 2007 Albuquerque Balloon Fiesta
• Walking vs Jogging - some basic gait analysis
• Activity Comparison - analysis of some of the different activities we've logged
• Automotive Data - shows a set of data captured from the OBD-II interface in a vehicle
• Another Hot-Air Balloon Ride - from the 2008 Albuquerque Balloon Fiesta

Availability

Our first logger/sensor systems for sale will be on a special order basis, and we would like initially to work with especially interesting applications. There will be one or two packages initially: a Sensor Hub and one or more remotes, or one or more remotes connected wirelessly to a pc. Please contact us for more information.
